Freelander 2 was sold from 2006–2014, It is called Freelander LR2 in North America and The Middle East. There are Diesel 2.2 eD4, 2.2 SD4, TD4 and Petrol 2.0 Si4 options with turbochargers.
Diesel – 2.2 Turbo
| Options | Turbocharger |
|---|---|
2010-2014 LAND ROVER FREELANDER 2 (L359) 2.2 eD4 with 224DT, DW12BTED4 engine; 110kW 150HP | |
2010-2014 LAND ROVER FREELANDER 2 (L359) 2.2 SD4 4×4 with 224DT engine; 140kW 190HP | |
2006-2014 LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4×4 with 224DT, DW12BTED4 engine; 110kW 150HP | |
2007-2014 LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4×4 with 224DT engine; 112kW 152HP | |
2006-2014 LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4×4 with 224DT, DW12BTED4 engine; 118kW 160HP |
Petrol – 2.0 Turbo
| Options | Turbocharger |
|---|---|
2006-2014 LAND ROVER FREELANDER 2 (L359) 2.0 Si4 4×4 with 204PT engine; 177kW 241HP |
It’s easy to confirm your Freelander 2 diesel turbocharger fitments
Both Garrett and Mitsubishi provide turbocharger solutions for Land Rover Freelander 2 2.2 diesel engines, Garrett GTB1752VK turbochargers and Mitsubishi TD04V turbochargers. So you will find different turbochargers even though they are the same Freelander 2 model with the same 224DT or DW12BTED4 engine.
Tell the difference between GTB1752VK turbo and TD04V turbo by their appearance

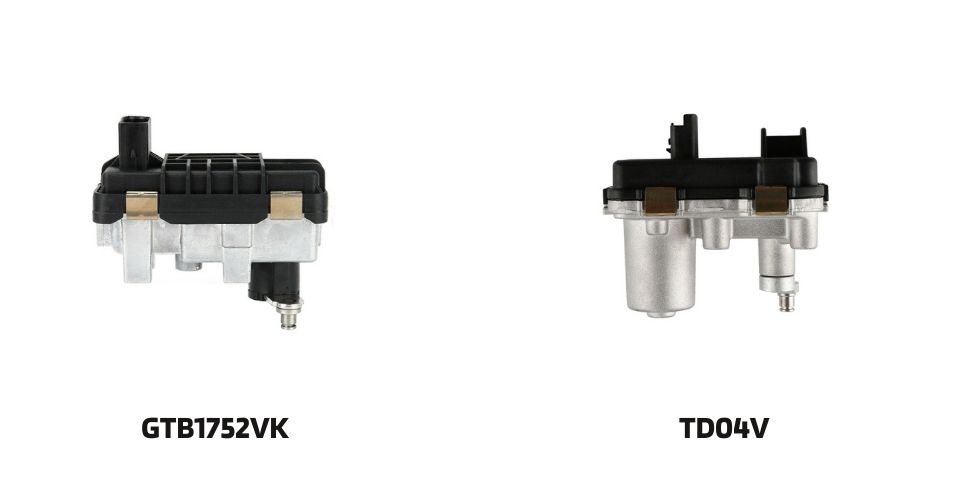

Check the turbocharger electric actuator
We will find that their plug-in interface locations are different, GTB1752VK turbocharger is in the middle position but TD04V turbocharger is in the edge position

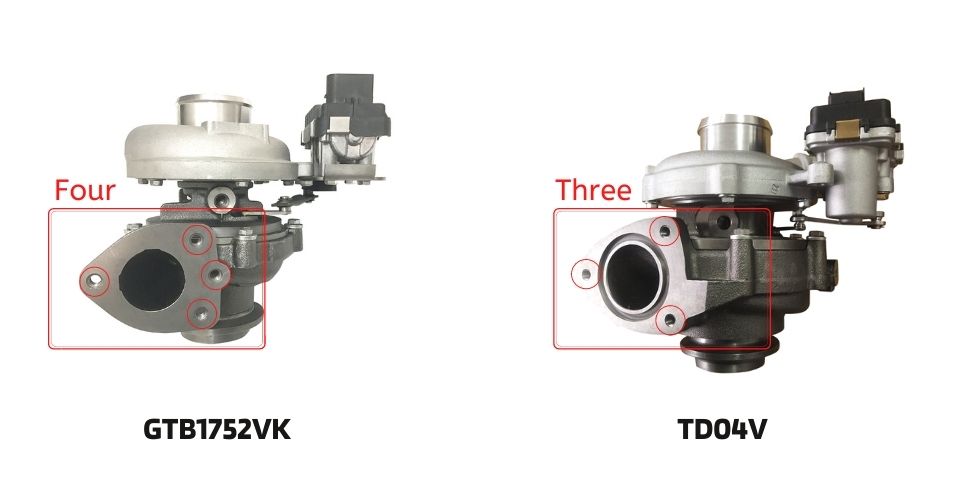

Check the turbocharger turbine housing
Pay attention to the number of fixing screws, you will see there are four screws on GTB1752VK turbocharger, but only three screws on TD04V turbocharger.
The part number or OE number is the unique identifier
The part number or OE number which is written on the turbocharger compressor housing’s nameplate, uniquely identifies the Freelander 2 turbocharger. This is why you must check part/OE number and confirm correct fitments when you check freelander 2 turbo replacement cost.
Maybe you will find numbers as follows:
LR006862, LR003578, LR024702, LR029637, 9684856680, 753546-0023, 753546-5023S, 753546-9023S, 753546-5014S, 753546-0014, 753546-14, 753546-23, 6G9Q6K682CA, 6G9Q6K682CB
If it matches up with one of the numbers above, then your original land rover Freelander 2 turbo is from Garrett, It is a GTB1752VK turbocharger, It is easy to save mass search time and get a correct fitment aftermarket turbocharger directly. Offer 2 years warranty.
Or you will see these numbers:
LR038322, LR022358, LR065510, LR038309, LR049592, 49477-01203, 49477-01214, 49477-01200, 49477-01202, 4947701203, 4947701214, 4947701200, 4947701202, 9906194170, BG9Q6K682CB, BG9Q6K682CC
Then your turbocharger is from Mitsubishi, it is a TD04V turbocharger, and also has the 2 years warranty aftermarket turbocharger replacement. Save big money for you.
What turbochargers on Freelander 2 2.0 Si4?
Freelander 2 2.0 Si4 turbocharger is supplied by BorgWarner, It is a K03 turbocharger.
The part or OE numbers on name plate are:
LR031510, LR057362, LR075185, LR045098, LR066505, LR038308, LR057362, 5303-970-0198, 5303-988-0198
